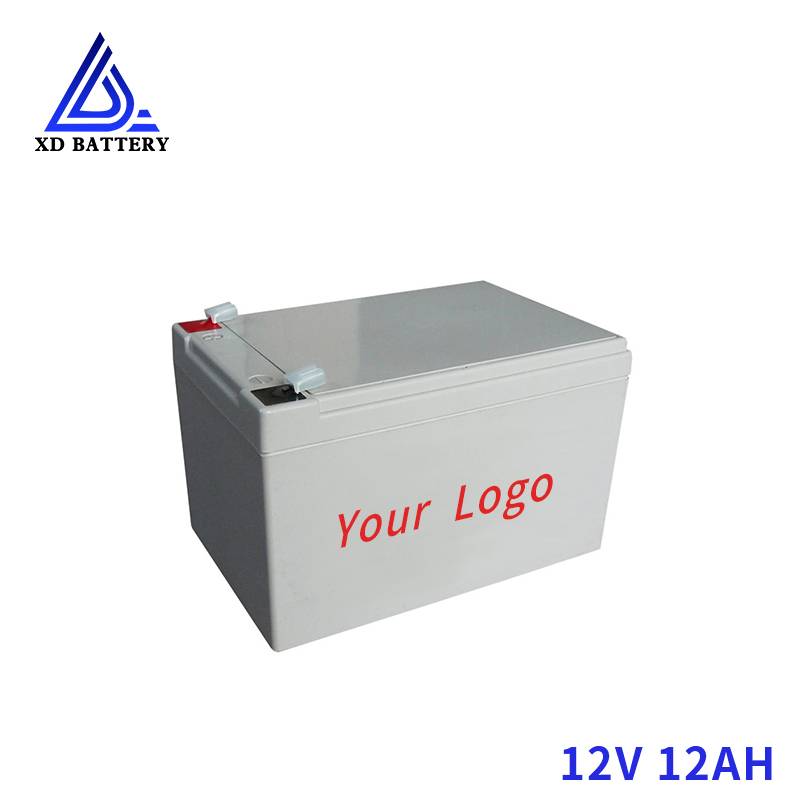

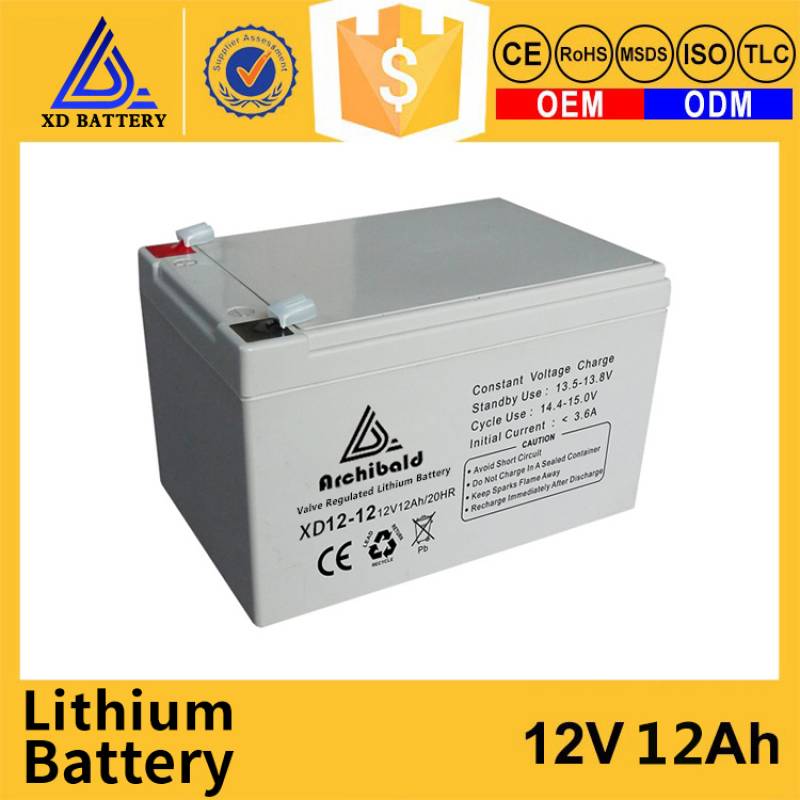

12V 12AH Lithium Lifepo4 Battery 3 Years Warranty Rechargeable

OEM/ODM
Warranty:3years
Voltage:12.8V
Weight:1.78kg
Dimensions:151*98*95mm
Color:White or customization
Maintenance Type:free
Application:Communication, Traffic, IT, Financial, UPS, Solar, Radio, Electric Power, Data Centre, Aviation, Home, Electrocar, etc
Certification:CE / UL / ISO9001 / Rohs

12V 12AH Lithium Lifepo4 Battery 3 Years Warranty Rechargeable



ATTENTION:

We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !

Welcome customize shell,weight, size,MBS,technology,etc !

Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V

Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah

Parameter

  Item

12v 12ah lifepo4 battery pack

  Brand

Archibald

Type

Lithium Iron Phosphate

Part No.:

LiFePO4 battery

Voltage Nominal

12.8V (Customized 3.2V 12V 24V 36V 48V)

Capacity Nominal

12AH

Max continuous discharge current

12A Or Customized

Standard charge current

5A Or Customized

Weight

1.78kg Or Customized

Dimension

151*98*95mm Or Customized

Operating Temperature Range

Charge:0 to +60°C

Discharge: -20 to +60

Life Cycle

More than 2000times (100%DOD)

Package

ABS/Metal Case Or Customized

Customized

Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized


10 Advantages

1. Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits;

2. Long cycle life, 100%DOD cycle for more than 2000 cycles remaining capacity more than 70%.

3. High energy density, low internal resistance;

4. Excellent safety performance, no explosion, no fire;

5. Good storage characteristics

6. Good high or cold temp performance

7. High capacity & light weight

8. Environmentally friendly

9. No memory effect

10. LCD display can be add.


Aging Test

Strict Quality Control: Cell test and battery pack test before producing & delivering.

As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.




Applications

1. Golf trolleys, Golf carts,

2. UPS backup

3. Fire alarm and security systems

4. Telecommunication equipment

5. Electric equipment and telemeter equipment

6. Light equipment, dc 12v led lights

7. Wireless lawn movers vacuum cleaner and washing machine

8. Toys and consumer electronics

9. Solar systems 12v

10.Portable power tools measuring and medical equipment

11.Portable video camera portable personal computer

12.Garden lighting

13.Sound systems

OEM/ODM


1.Make your LOGO battery by free.
2.Meet your packaging request by free.
3.Make your required technology.
4.Customized Color, Size, Weight,etc.



Welcom to contact us get discount !
