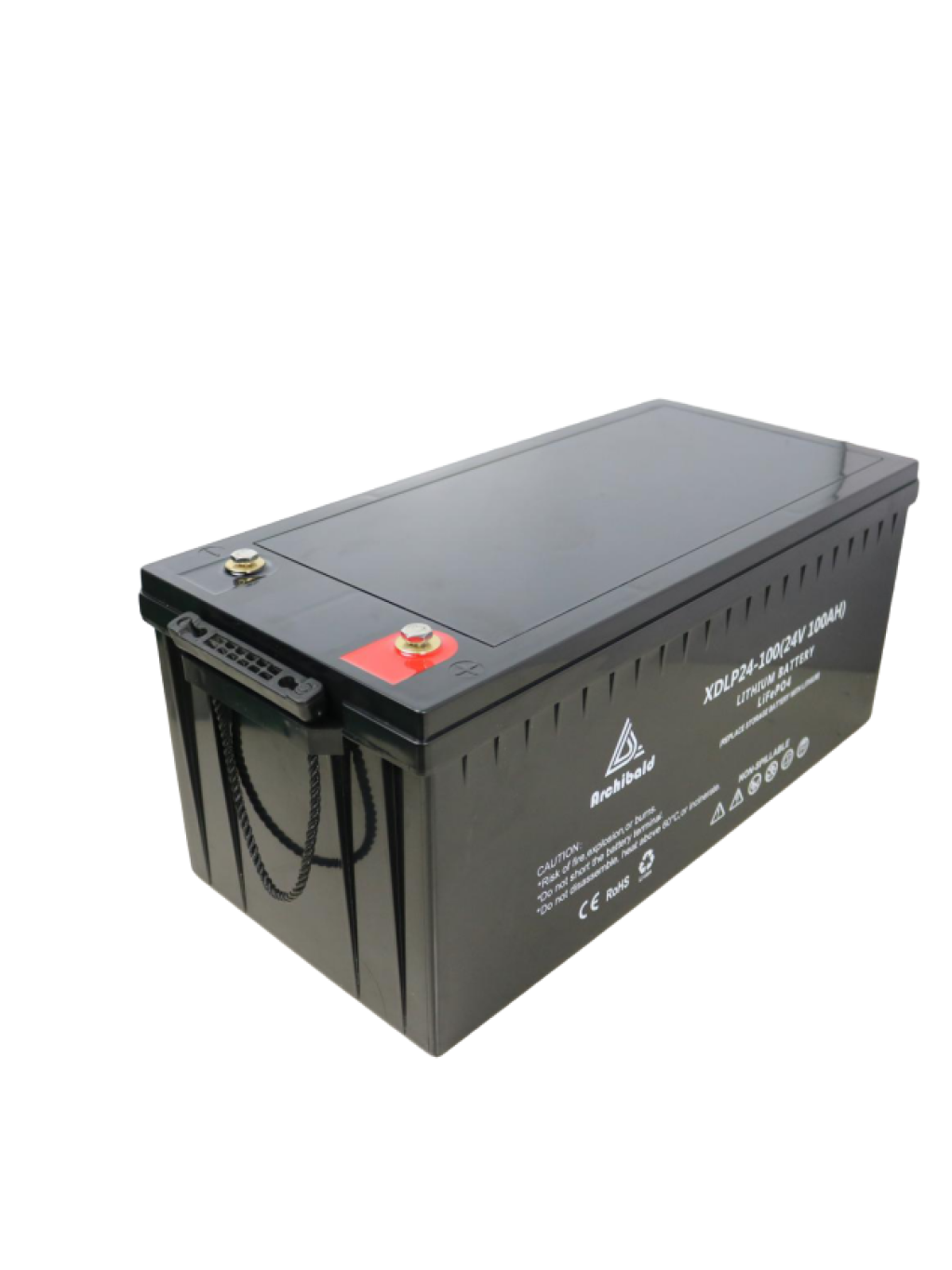

24V 100AH Lifepo4 Battery for RV, Motorhomes, Caravans, solar trailer, residential solar off grid

Basic Electrical Specification

Nominal Voltage 25.6 V
Nominal Capacity 105 Ah
Energy 2688 Wh
Resistance ≤0.5mΩ
Efficiency 99%
Self Discharge ≤3% per month




Charge Specification

Recommended Charge Current 25A ( Range:0.2C -0.5C )
Maximum Charge Current 100 A
Recommended Charge Voltage 29.2V
BMS Charge Voltage Cut-Off 29.6V
Reconnect Voltage 28.4V
Balancing Voltage 27.24V


Discharge Specification

Maximum Continuous Discharge Current 100 A
Peak Discharge Current 250A(3-5s)
BMS Discharge Current Cut-Off 600A(500ms)
Recommended Low Voltage Disconnect 21 V
BMS Discharge Voltage Cut-Off 18.8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage 20.4 V (2.3 ±0.1 vpc)
Short Circuit Protection 200-300 µs


Temperature Specification

Discharge Temperature -4 to 130 ºF (-20 to 55 ºC)
Charge Temperature 32 to 130 ºF (0 to 55 ºC)
Storage Temperature - 1 month -4 to 113 ºF (-20 to 45 ºC)
Storage Temperature - 1 year 32 to 95 ºF (0 to 35 ºC)
BMS High Temperature Cut-Off 176 ºF (80 ºC)
Reconnect Temperature 122 ºF (50 ºC)
BMS Low Temperature Cut-Off (Charging) 32 ºF (0 ºC)
Reconnect Temperature (Charging) 41 ºF (5 ºC)


BMS Overview

Over Current Protection yes
Under Voltage Protection yes
Over Voltage Protection yes
Overload Protection yes
High Temperature Protection yes
Low Temperature Protection 32 ºF (0 ºC) / 41 ºF (5 ºC)
Short Circuit Protection yes


Mechanical Specifications


Dimensions (L x W x H) 19.02×6.69×9.45" (483×170×240mm)
Weight 48.5 lbs (22kg)
Terminal Type M8 (22mm)
Terminal Torque 10 ~ 12 N-m
Case Material ABS
Enclosure Protection IP65
Cell Type - Chemistry Prismatic - LiFePO4

Certifications

MSDS Datasheet MSDS
UN38.3 DG61
CE Certification EN61000-6-1, EN61000-6-3
ROHS Certification ROHS
FCC Certification Part15B
IEC62619 documentation or 49 CFR IEC62619 / 49 CFR 173.185
IMDG Code UN3840 / Class 9


Cells / Internal Arrangment

Brand EVE Energy Co., Ltd
Product Prismatic Aluminum-clad LFP Battery
Model LF105
Specification 3.2 V / 105 Ah
Cell / BMS Impact Protection Large Foam Inserts as shown
Cable Size All cable sizes capable of meeting all specs set forth by BMS
Cable Color Color coded (Red/Black/Blue)
Low Temperature Probe Probe placed on cells / wire attached to BMS


BMS

Model LFP-8S-150A
Max Continous Dsicharge Current 150A
Cell Balancing 27.24V
Under Voltage Protection yes
Over Voltage Protection yes
Overload Protection yes
High Temperature Protection yes
Low Temperature Protection 0C Disconnect, 5C Reconnect
Short Circuit Protection yes


Battery Case

Dimensions (L x W x H) 19.02×6.69×9.45" (483×170×240mm)
Terminal Type M8 (22mm)
Terminal Torque 10 ~ 12 N-m
Case Material ABS
Enclosure Protection IP65


Packaging

Dimensions (L x W x H) 21.06 x 8.66 x 11.62" (535 x 220 x 295 mm)
Weight 51.8 lbs (23.5kg)




Packaging&shipping

Packing

Carton + Wooden + Pallet

Shipping

Express | By air | By sea
