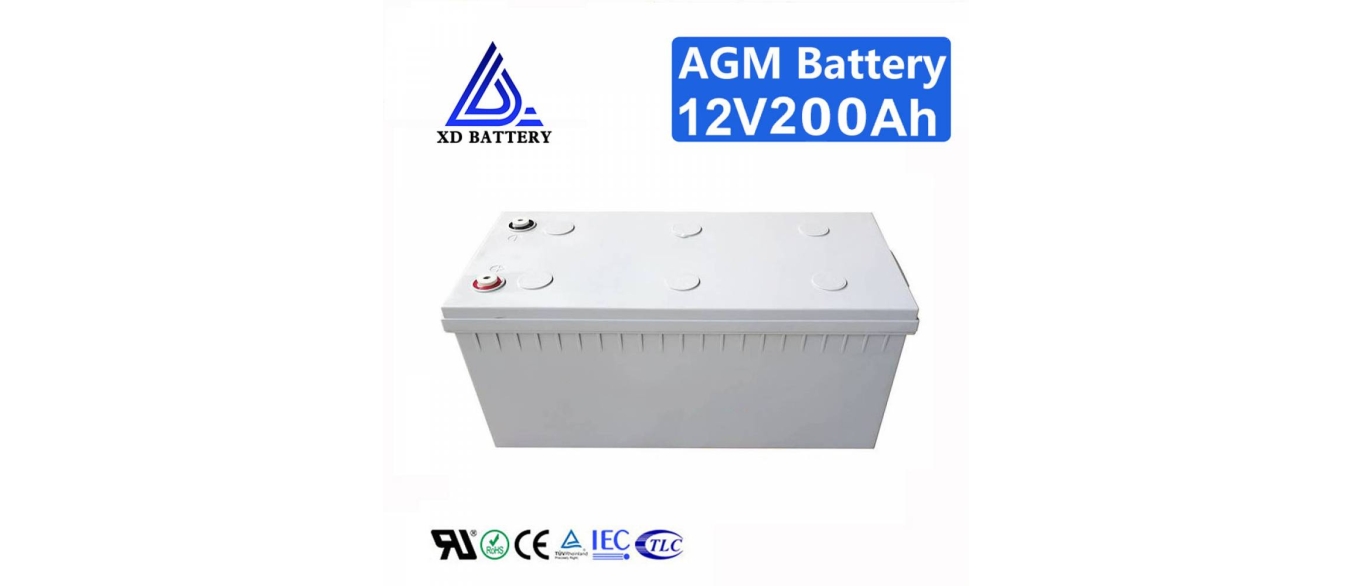

High Capacity 12V 200AH Lead Acid Battery Deep Cycle

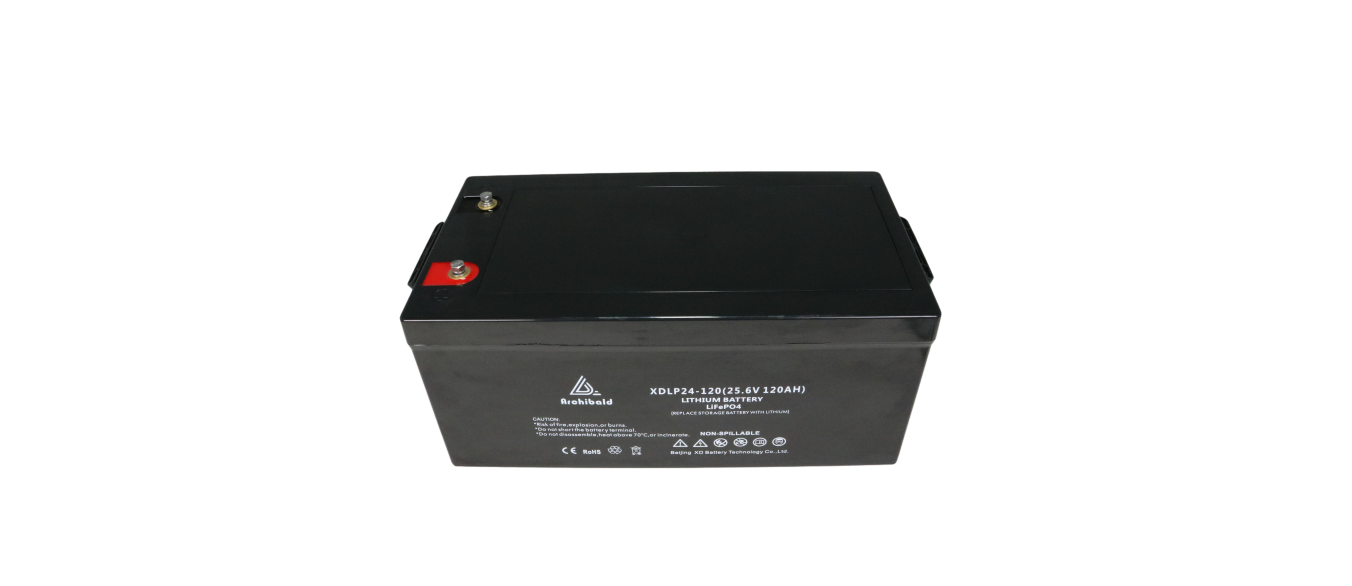

24V 120AH Lifepo4 Battery for RV, Motorhomes, Caravans, solar trailer, residential solar off grid
Lead Acid Battery 12V 250Ah Custom LOGO Deep Cycle Battery
12V 120AH Lifepo4 Lithium Battery Pack for RVs, Caravans, Motorhomes
|
Serial number |
project |
General parameters |
|
1 |
Number of series |
16S |
|
2 |
Rated voltage |
51.2V |
|
3 |
End of discharge voltage |
43.2V |
|
4 |
Charging voltage |
Recommend 56.4V (56V – 58.4V) |
|
5 |
Internal resistance (battery pack) |
≤100mΩ |
|
6 |
Self-discharge rate |
≤2%/month |
|
7 |
range of working temperature |
0～65℃ charge |
|
8 |
Storage temperature range |
-40～70℃ |
|
9 |
Positive and negative lead way |
Terminal 4P*1 Fence terminal*1 |
|
10 |
Display screen |
LED display, four physical buttons |
|
11 |
air switch |
DC 1P125A MCB |
|
12 |
Protective function |
Overcharge, over discharge, short circuit, overload, over temperature, etc. |
|
13 |
Shipment product charge |
50% power when delivery |
|
14 |
Packing material |
Carton |
|
S/N |
function name |
Function setting |
Cell voltage alarm |
Settings Value |
Reference setting range |
|
1 |
Monomer over-voltage protection |
Turn on |
Over-voltage protection voltage |
3750mV |
3000~6000mV |
|
2 |
Cell under-voltage protection |
Turn on |
Under-voltage protection voltage |
2700mV |
100~3200mV |
|
3 |
Battery over-voltage protection |
Turn on |
Over-voltage protection voltage |
57.6V |
40.0V~60.0V |
|
4 |
Battery under-voltage protection |
Turn on |
Under-voltage protection voltage |
43.2V |
30.0V~60.0V |
|
5 |
Cell high temperature protection |
Turn on |
Cell high temperature protection |
65℃ |
30℃~90℃ |
|
6 |
Charging low temperature protection |
Turn on |
Charging low temperature protection |
0℃ |
-5~5℃ |
|
7 |
Discharge low temperature protection |
Turn on |
Discharge low temperature protection |
-20℃ |
-40~-10℃ |
|
8 |
Overcurrent protection |
Turn on |
Overcurrent protection |
105A |
0A~110A |
