5.12KWH 48V lifepo4 Wall Mounted battery, Power wall

Item:51.2V 100AH lifepo4 battery module, Wall mountable, Power wall.

Dimension: 620*370*205mm (Length*Width*Thickness)

Weight: 40KG

Max Charge Current:100A

Max continuous discharge current: 100A

Max power output: 5.12KWH

Communication port: On demand.

LED Screen: YES




Product Description





Parameter

Serial number

project

General parameters

1

Number of series

16S

2

Rated voltage

51.2V or 48V

3

End of discharge voltage

43.2V or

4

Charging voltage

Recommend 56.4V (56V – 58.4V)

5

Internal resistance (battery pack)

≤100mΩ

6

Self-discharge rate

≤2%/month

7

range of working temperature
(≤95%R.H.)

065 charge
2065 discharge

8

Storage temperature range
(≤95%R.H.)

-4070

9

Positive and negative lead way

Terminal 4P*1 Fence terminal*1

10

Display screen

LED display, four physical buttons

11

Protective function

Overcharge, over discharge, short circuit, overload, over temperature, etc.

12

Shipment product charge

50% power when delivery

13

Packing material

Carton or Wooden box





Battery Management System

S/N

function name

Function setting

Cell voltage alarm

Settings Value

Reference setting range

1

Monomer over-voltage protection

Turn on

Over-voltage protection voltage

3750mV

3000~6000mV

2

Cell under-voltage protection

Turn on

Under-voltage protection voltage

2700mV

100~3200mV

3

Battery over-voltage protection

Turn on

Over-voltage protection voltage

57.6V

40.0V~60.0V

4

Battery under-voltage protection

Turn on

Under-voltage protection voltage

43.2V

30.0V~60.0V

5

Cell high temperature protection

Turn on

Cell high temperature protection

65

30~90

6

Charging low temperature protection

Turn on

Charging low temperature protection

0

-5~5

7

Discharge low temperature protection

Turn on

Discharge low temperature protection

-20

-40~-10

8

Overcurrent protection

Turn on

Overcurrent protection

105A

0A~110A


Performance Curves









Packing & Shipping

Packing


Carton + Wooden + Pallet

Shipping

Express | By air | By sea

According to your requirments




Customers Feedback

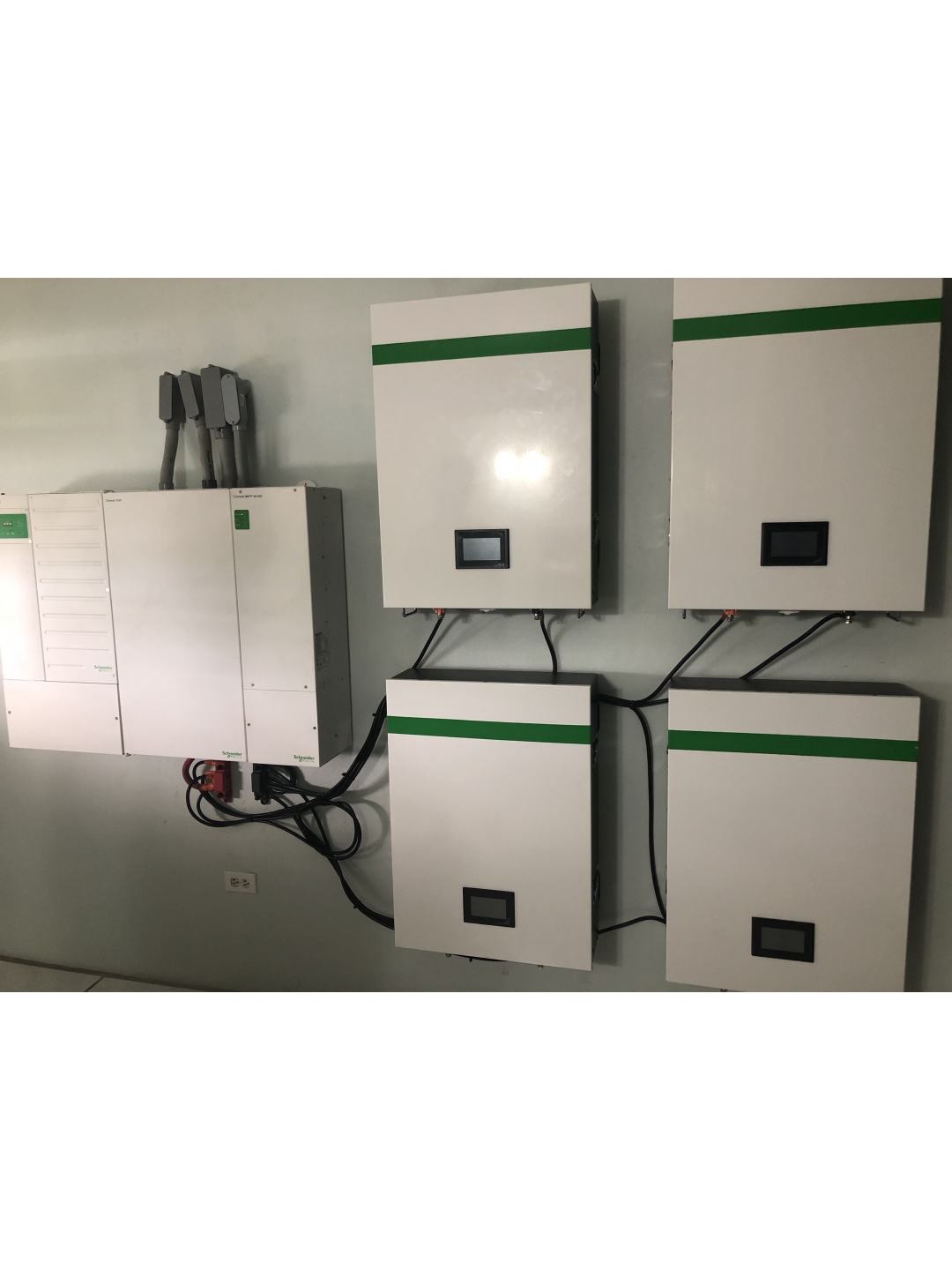

Customers Projects and Application











Our Products Passed the certifications of CE / ISO9001 / ISO14001 / Rohs




Our Services

Warranty : 3- 5 years

OEM / ODM : Avaliable

MOQ : 10 piece
