OEM/ODM
Warranty:3years
Voltage:12V
Weight:52KG
Dimensions:L522*W240*H218mm
Color:White or customization
Maintenance Type:free
Application:Communication, Traffic, IT, Financial, UPS, Solar, Radio, Electric
Power, Data Centre, Aviation, Home, Electrocar, etc
Certification:CE / UL / ISO9001 / Rohs
Parameter:
|
Nominal Voltage |
12V |
|
|
Nominal Capacity(10HR) |
190AH |
|
|
Dimension |
Length |
522±3mm (20.55 inches) |
|
Width |
240±2mm (9.45 inches) |
|
|
Container Height |
218±2mm (8.58 inches) |
|
|
Total Height (with Terminal) |
243±2mm (8.81 inches) |
|
|
Approx Weight |
Approx 52Kg |
|
|
Terminal |
T11 |
|
|
Container Material |
ABS |
|
|
Rated Capacity |
20hr ,1.80V/cell,25℃/77℉ |
10.0 AH/0.50A |
|
10hr,1.80V/cell,25℃/77℉ |
9.0AH/0.90A |
|
|
5hr,1.75V/cell,25℃/77℉ |
8.37 A H/1.66A |
|
|
3hr,1.75V/cell,25℃/77℉ |
7.64AH/2.55A |
|
|
1hr,1.60V/cell,25℃/77℉ |
6.88 AH/6.88A |
|

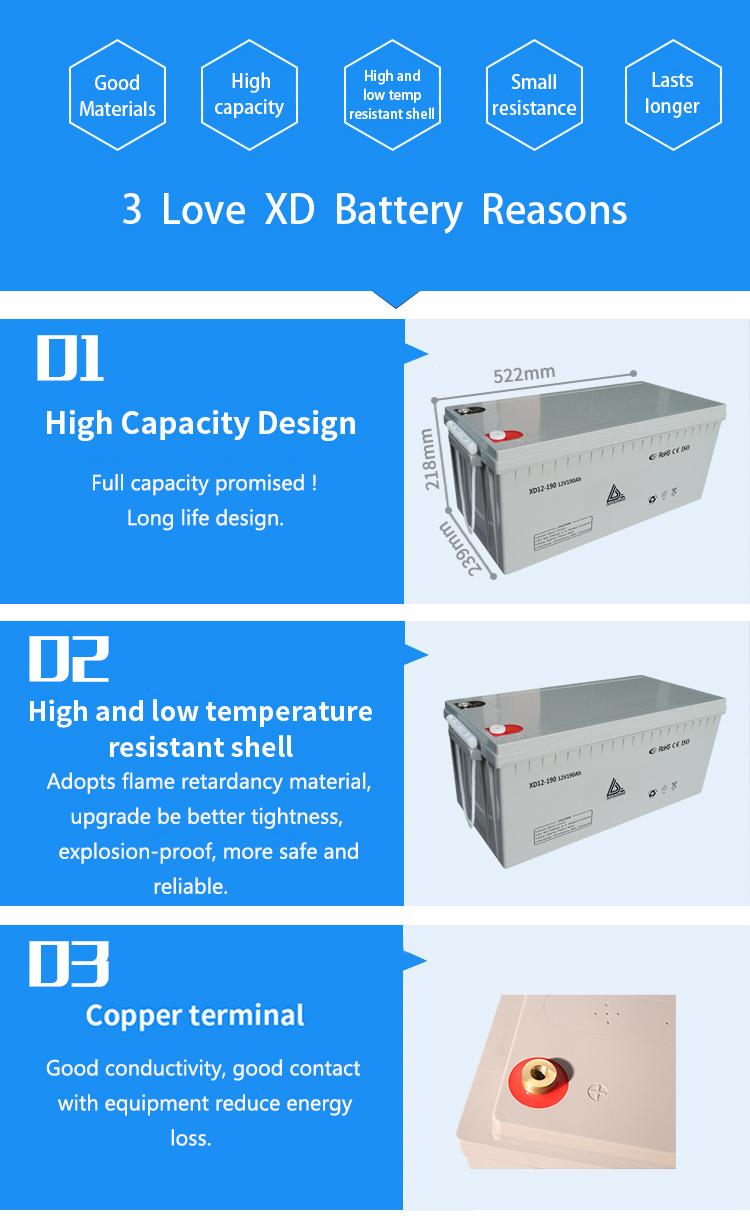

Feature:
1. High-strength ABS plastic battery slot and cover, compact structure. good resistance.
2. Special lead-based multi-alloy grid, with small internal resistance and corrosion resistance.
3. good opacity, strong charge acceptance.
4. New electrode plate manufacturing process, high utilization rate of active materials.
5. Multi-layer sealing technology and special sealing glue ensure that the battery has no leakage, no acid mist .
